Type A - Thick cover (skive type)
Type AT - Thin cover (no-skive type)
Construction: This hose consists of an inner tube of oil synthetic rubber, single wire braid reinforcement, and an oil and weathe
r resistant synthetic rubber cover.
Tube: Oil resistant synthetic rubber
Reinforcement: single high tensile steel wire braid
Cover : Abrasion and weather resistant synthetic rubber
Working Temperature: From-40℃ up to +100℃

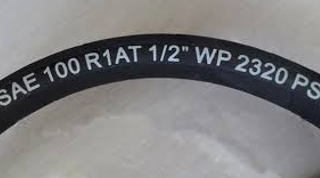

Structure picture | Real product picture |
| |
REFERENCE SPECIFICATION SAE100R1AT | ||||||||||||
Nominal Diameter | Inside Diameter | Reinforcement | Outside | Working Pressure | Proof Pressure | Burst Pressure | Bend | Weight | ||||
mm | mm | mm | Mpa | PSI | PSI | PSI | mm | Kg/m | ||||
mm | inch | min | max | min | max | max | max | min | ||||
5 | 3/16" | 4.6 | 5.4 | * | * | 13 | 20.7 | 3002 | 6003 | 12006 | 89 | 0.2 |
6.4 | 1/4" | 6.2 | 7 | 10.8 | 11.4 | 13.5 | 19 | 2755 | 5496 | 10991 | 102 | 0.25 |
7.9 | 5/16" | 7.7 | 8.5 | 12.5 | 13.1 | 15.4 | 17.2 | 2494 | 5003 | 9991 | 114 | 0.31 |
9.5 | 3/8" | 9.3 | 10.1 | 14.5 | 15.1 | 17.5 | 15.5 | 2248 | 4495 | 8990 | 127 | 0.36 |
12.7 | 1/2" | 12.3 | 13.5 | 17.7 | 18.3 | 20.6 | 13.8 | 2001 | 4002 | 8004 | 178 | 0.45 |
15.9 | 5/8" | 15.5 | 16.7 | 21.1 | 21.7 | 24 | 10.3 | 1494 | 3002 | 6003 | 203 | 0.52 |
19 | 3/4" | 18.6 | 19.8 | 24.6 | 25.4 | 27.7 | 8.6 | 1247 | 2494 | 5003 | 241 | 0.65 |
25.4 | 1" | 25 | 26.4 | 32.1 | 32.9 | 35.4 | 6.9 | 1001 | 2001 | 4002 | 305 | 0.91 |
31.8 | 1-1/4" | 31.4 | 33 | 40.8 | 41.6 | 44.1 | 4.3 | 624 | 1247 | 2494 | 419 | 1.3 |
38.1 | 1-1/2" | 37.7 | 39.3 | 47.2 | 48 | 50.5 | 3.4 | 493 | 1001 | 2001 | 508 | 1.7 |
50.8 | 2" | 50.4 | 52 | 59.9 | 60.7 | 63.2 | 2.6 | 377 | 754 | 1494 | 635 | 2 |
REFERENCE SPECIFICATION SAE100R1A | ||||||||||||
Nominal Diameter | Inside Diameter | Reinforcement | Outside | Working Pressure | Proof Pressure | Burst Pressure | Bend | Weight | ||||
mm | mm | mm | Mpa | PSI | PSI | PSI | mm | Kg/m | ||||
mm | inch | min | max | min | max | max | max | min | ||||
5 | 3/16" | 4.8 | * | * | * | * | 20.7 | 3002 | 41.4 | 82.8 | 89 | 0.28 |
6.4 | 1/4" | 6.2 | 7 | 10.8 | 11.4 | 15.8 | 19 | 2755 | 37.9 | 75.8 | 102 | 0.28 |
7.9 | 5/16" | 7.7 | 8.5 | 12.5 | 13.1 | 17.6 | 17.2 | 2494 | 34.5 | 68.9 | 114 | 0.33 |
9.5 | 3/8" | 9.3 | 10.1 | 14.5 | 15.1 | 19.8 | 15.5 | 2248 | 31 | 62 | 127 | 0.4 |
12.7 | 1/2" | 12.3 | 13.5 | 17.7 | 18.3 | 23 | 13.8 | 2001 | 27.6 | 55.2 | 178 | 0.53 |
15.9 | 5/8" | 15.5 | 16.7 | 21.1 | 21.7 | 26.2 | 10.3 | 1494 | 20.7 | 41.4 | 203 | 0.59 |
19 | 3/4" | 18.6 | 19.8 | 24.6 | 25.4 | 30.2 | 8.6 | 1247 | 17.2 | 34.5 | 241 | 0.82 |
25.4 | 1" | 25 | 26.4 | 32.1 | 32.9 | 38.4 | 6.9 | 1001 | 13.8 | 27.6 | 305 | 1.06 |
31.8 | 1-1/4" | 31.4 | 33 | 40.8 | 41.6 | 46.1 | 4.3 | 624 | 8.6 | 17.2 | 419 | 1.44 |
38.1 | 1-1/2" | 37.7 | 39.3 | 47.2 | 48 | 52.5 | 3.4 | 493 | 6.9 | 13.8 | 508 | 1.73 |
50.8 | 2" | 50.4 | 52 | 59.9 | 60.7 | 66 | 2.6 | 377 | 5.2 | 10.3 | 635 | 2.25 |
Applications: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.
Packing: Fibrage belt wrapping Braided bag each rollor according to customers requirement
