SAE 100R8
SAE 100R8
SAE 100R8
Construction: This hose shall consist of a thermoplastic inner tube resistant to hydraulic fluids with suitable synthetic fiber reinforcement,
and a hydraulic fluid and weather resistant thermoplastic cover.
Tube: Thermoplastic inner tube
Reinforcement: Suitable synthetic fiber reinforcement.
Cover: Hydraulic fluid and weather resistant thermoplastic cover.
Application: This section covers hose for use with petroleum base hydraulic fluids
Working temperature: -40℃~+93℃.

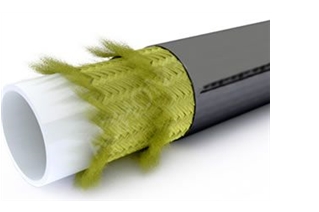

Structure picture | Real product picture |
|
|
Specification:
SIZE | SAE | I.D | O.D | W.P | P.P | B.P | minB.R | W.T | ||||||
mm | inch | Dash | Min | Max | Max | Mpa | Psi | Mpa | Psi | Mpa | Psi | inch | mm | Kg/m |
5 | 3/16 | -3 | 4.6 | 5.4 | 14.6 | 35 | 5075 | 70 | 10150 | 140 | 20300 | 3.54 | 90 | 0.086 |
6.3 | 1/4 | -4 | 6.2 | 7.0 | 16.8 | 35 | 5075 | 70 | 10150 | 140 | 20300 | 3.94 | 100 | 0.097 |
10 | 3/8 | -6 | 9.3 | 10.3 | 20.3 | 28 | 4060 | 56 | 8120 | 112 | 16240 | 4.92 | 125 | 0.178 |
13 | 1/2 | -8 | 12.3 | 13.5 | 24.6 | 24.5 | 3550 | 49 | 7105 | 98 | 14210 | 7.09 | 180 | 0.216 |
16 | 5/8 | -10 | 15.5 | 16.7 | 29.8 | 19.2 | 2780 | 38.5 | 5580 | 77 | 11165 | 8.07 | 205 | 0.312 |
19 | 3/4 | -12 | 18.6 | 19.8 | 33.0 | 15.7 | 2275 | 31.5 | 4565 | 63 | 9135 | 9.45 | 240 | 0.360 |
25 | 1 | -16 | 25.0 | 26.4 | 38.6 | 14 | 2030 | 28 | 4060 | 56 | 8120 | 11.81 | 300 | 0.505 |
Application: This section covers hose for use with petroleum base hydraulic fluids
Packing: Fibrage belt wrapping Braided bag each rollor according to customers requirement
