SAE100R17
SAE100R17
SAE100R17
Construction: This hose consists of an inner tube of oil-resistant synthetic rubber, one and two wire braids reinforcement,
and an oil- and weather-resistant synthetic rubber cover.
Tube: Oil resistance synthetic rubber.
Reinforcement: one and two wire braids reinforcement
Cover: Hydraulic fluid and weather resistant synthetic rubber cover.
Working Temperature: -40℃- +100℃.

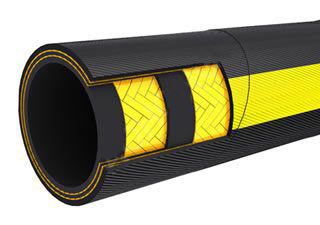

Structure picture | Real product picture |
|
|
Specification:
SIZE | SAE | I.D | W.D | O.D | W.P | P.P | B.P | minB.R | W.T | ||||||
mm | inch | Dash | Min | Max | Max | Max | Mpa | Psi | Mpa | Psi | Mpa | Psi | inch | mm | Kg/m |
6.3 | 1/4" | -04 | 6.2 | 7.0 | 11.0 | 13.2 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 1.97 | 50 | 0.169 |
8 | 5/16" | -05 | 7.7 | 8.5 | 13.0 | 15.0 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 2.17 | 55 | 0.210 |
10 | 3/8" | -06 | 9.3 | 10.1 | 15.0 | 17.0 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 2.56 | 65 | 0.254 |
13 | 1/2" | -08 | 12.3 | 13.5 | 18.8 | 21.1 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 3.54 | 90 | 0.466 |
16 | 5/8" | -10 | 15.5 | 16.7 | 23.6 | 25.9 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 3.94 | 105 | 0.586 |
19 | 3/4" | -12 | 18.6 | 19.8 | 27.7 | 30.3 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 4.72 | 125 | 0.749 |
25 | 1" | -16 | 25.0 | 26.4 | 35.6 | 38.6 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 5.91 | 150 | 1.457 |
Application: Hose range suitable to carry hydraulic fluids, such as glycol, mineral oils, emulsion, hydrocarbons, etc.
Packing: Fibrage belt wrapping Braided bag each rollor according to customers requirement
