DIN EN856 4SH
DIN EN856 4SH
DIN EN856 4SH
Construction: This hose consists of an inner tube of oil synthetic rubber, 4 wires braid reinforcement, and an oil and weather resistant synthetic rubber cover.
Tube: Oil resistance synthetic rubber.
Reinforcement: Four wire braids reinforcement.
Cover: Hydraulic fluid and weather resistant synthetic rubber cover.
Working Temperature: From-40℃ up to +100℃

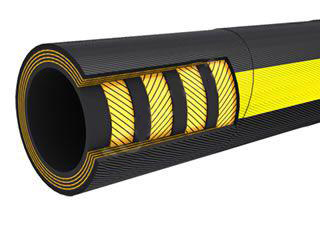

Structure picture | Real product picture |
|
|
Specification:
Nominal Diameter | Inside Diameter | Reinforcement Diameter | Outside Diameter | Working Pressure | Proof Pressure | Burst Pressure | Min.Bend Radius | Weight | |||||||
mm | mm | mm | MPa | PSI | MPa | PSI | MPa | MPa | mm | Kg/m | |||||
mm | inch | min | max | min | max | min | max | max | max | min | min | ||||
10 | 3/8＂ | 9.3 | 10.1 | 17.4 | 18.2 | 21 | 22 | 44.5 | 6453 | 89 | 12905 | 178 | 25810 | 180 | 0.78 |
12 | 1/2＂ | 12.3 | 13.5 | 20.3 | 21.1 | 24 | 25 | 41.5 | 6018 | 83 | 12035 | 166 | 24070 | 230 | 0.93 |
16 | 5/8＂ | 15.5 | 16.7 | 23.8 | 24.6 | 27.5 | 28.5 | 35 | 5075 | 70 | 10150 | 140 | 20300 | 250 | 1.17 |
19 | 3/4＂ | 18.6 | 19.8 | 28.3 | 29.1 | 32 | 33 | 35 | 5075 | 70 | 10150 | 140 | 20300 | 300 | 1.48 |
25 | １＂ | 25 | 26.4 | 35.4 | 36.2 | 39 | 40 | 28 | 4060 | 56 | 8120 | 128 | 18560 | 340 | 2.02 |
31 | １-1/4＂ | 31.4 | 33 | 45.1 | 45.9 | 50 | 51 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 460 | 3.05 |
38 | １-1/2＂ | 37.7 | 39.3 | 51.6 | 52.4 | 56.5 | 57.5 | 18.5 | 2683 | 37 | 5365 | 74 | 10730 | 560 | 3.52 |
51 | 2＂ | 50.4 | 52 | 64.6 | 65.4 | 70.5 | 71.5 | 16.5 | 2393 | 33 | 4785 | 66 | 9570 | 660 | 5.2 |
Application: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.
Packing: Fibrage belt wrapping Braided bag each rollor according to customers requirement
