SAE 100R9
SAE 100R9
SAE 100R9
Type A - Thick cover (skive type)
Type AT - Thin cover (no-skive type)
Construction: This hose consists of an inner tube of oil synthetic rubber, four wire braids reinforcement, and an oil and weather resistant synthetic rubber cover.
Tube: Oil resistance synthetic rubber.
Reinforcement: Four wire spiral reinforcement.
Cover: Hydraulic fluid and weather resistant thermoplastic cover.
Working Temperature: -40℃~+100℃

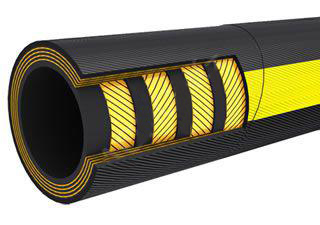

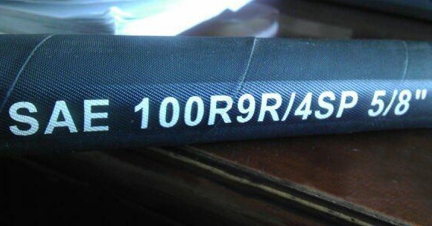

Structure picture | Real product picture |
| |
Specification:
Nominal | Inside | Reinforcement | Outside | Working | Proof | Burst | Min.Bend | Weight | ||||
mm | mm | mm | MPa | PSI | MPa | MPa | mm | Kg/m | ||||
mm | inch | min | max | min | max | max | max | min | ||||
10 | 3/8" | 9.3 | 10.1 | 17.4 | 18.2 | 20.5 | 31 | 4495 | 62 | 124 | 125 | 0.7 |
12.5 | 1/2" | 12.3 | 13.5 | 20.3 | 21.1 | 23.5 | 27.6 | 4002 | 55.2 | 110.4 | 180 | 0.83 |
19 | 3/4" | 18.6 | 19.8 | 27.3 | 28.1 | 30.7 | 20.7 | 3002 | 41.4 | 82.8 | 240 | 1.3 |
25 | 1" | 25 | 26.4 | 35.4 | 36.2 | 39 | 20.7 | 3002 | 41.4 | 82.8 | 300 | 1.7 |
31.5 | 1-1/4" | 31.4 | 33 | 44.8 | 45.6 | 49 | 17.2 | 2494 | 34.4 | 68.8 | 420 | 3.08 |
38 | 1-1/2" | 37.7 | 39.3 | 50.6 | 51.4 | — | 13.8 | 2001 | 27.6 | 55.2 | 500 | 3.4 |
51 | 2" | 50.4 | 52 | 64.6 | 65.4 | — | 13.8 | 2001 | 27.6 | 55.2 | 660 | 4.35 |
Application: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.
Packing: Fibrage belt wrapping Braided bag each rollor according to customers requirement
