SAE 100R12
SAE 100R12
SAE 100R12
Construction: This hose consists of an inner tube of oil synthetic rubber, four spirals wire reinforcement, and an oil and weather resistant synthetic rubber cover.
Tube: Oil resistance synthetic rubber.
Reinforcement: Four wire spirals reinforcement.
Cover: Hydraulic fluid and weather resistant synthetic rubber cover.
Working Temperature: -40℃~+100℃

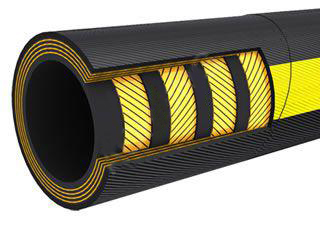

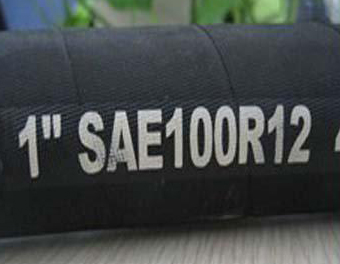

Structure picture | Real product picture |
|
|
Specification:
Nominal | Inside | Reinforcement | Outside | Working | Proof | Burst | Min.Bend | Weight | |||
mm | mm | mm | MPa | MPa | MPa | mm | Kg/m | ||||
mm | inch | min | max | min | max | max | max | min | |||
10 | 3/8＂ | 9.3 | 10.1 | 17.3 | 17.9 | 20.7 | 28 | 56 | 112 | 125 | 0.7 |
12.5 | 1/2＂ | 12.3 | 13.5 | 20.8 | 21.4 | 24.2 | 28 | 56 | 112 | 180 | 0.84 |
16 | 5/8＂ | 15.5 | 16.7 | 24.5 | 25.1 | 27.9 | 28 | 56 | 112 | 200 | 1.1 |
19 | 3/4＂ | 18.6 | 19.8 | 27.8 | 28.4 | 31.2 | 28 | 56 | 112 | 240 | 1.33 |
25 | １＂ | 25 | 26.4 | 35.1 | 35.7 | 39.1 | 28 | 56 | 112 | 300 | 1.85 |
31.5 | １-1/4＂ | 31.4 | 33 | 44.1 | 44.7 | 48.1 | 21 | 42 | 84 | 420 | 2.65 |
38 | １-1/2＂ | 37.7 | 39.3 | 50.1 | 50.7 | 54.3 | 17.5 | 35 | 70 | 500 | 3.2 |
51 | 2＂ | 50.4 | 52 | 62.7 | 63.3 | 67.7 | 17.5 | 35 | 70 | 630 | 4.5 |
Application: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.
Packing: Fibrage belt wrapping Braided bag each rollor according to customers requirement
